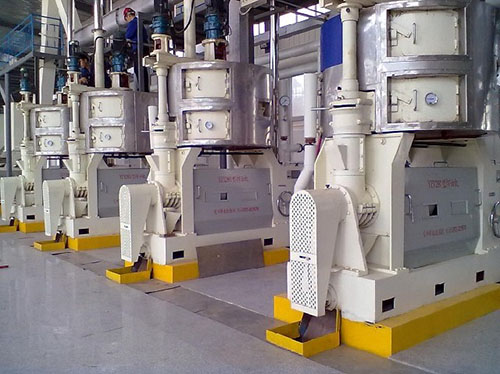

Palm Kernel Oil Pressing Machine

Palm-Kernel-Oil-Pressing-Machine

Type: palm kernel oil pressing

Processing material: palm kernel

Capacity: 200-3000T/D

Palm Kernel Oil Pressing Equipment: crusher, dryer, oil expeller

Application: High efficiency crude oil pressing from palm kernel with low oil residual

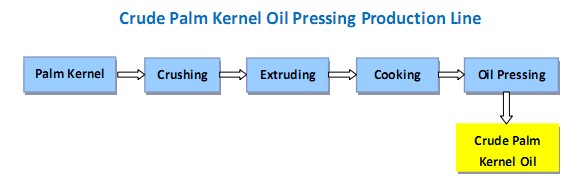

Palm Kernel Oil Pressing Plant Flow Chart:

crude-palm-kernel-oil-pressing-production-line

Main process in palm kernel press line:

◆Palm kernel Cleaning : It is used for removing the iron impurities, stone, fiber and pthers. These impurities are bad for machines, especial for the palm kernel oil expeller.

◆Palm kernel crushing:because the palm kernel is hard and big size, it is required to crash to smaller and even pieces. If once crashing can not reach the requirements, the second crashing is required. Crush palm kernels after softening and drying. The centrifugal crusher breaks nuts and separate palm kernel out completely.

◆ Palm kernel and nuts shell separation. Both dry and wet separations are available. Wet separation is mostly used in palm kernel separation, on basis of difference of relative density of palm kernel and shell.

◆ Palm kernel drying. Fresh kernel contains 20% moisture. Palm kernel has no mildew during transportation and storage while moisture drops below 7%.

◆ Cooking section: It is used for heating and cooking the crashing materials, to make is suitable for pressing, doing like this can help final user get the maximum oil and good quality cakes.

◆ Palm kernel oil pressing. Palm kernel oil pressing processing line is simple with usual oilseeds. The pre-pressing by oil pressing machine can obtain 1/4 palm kernel oil, and residual oil need twice pressing.

◆ Palm kernel Filtering section: after pressing, there are some oil dregs in the crude oil, after clarifying, we need to filter the crude oil to avoid to jam the oil pipes during refining processes.
